PU timing belt coatings vary in hardness, surface and heat resistance. Processing as required, suitable for food and heavy industry. Optimize performance…

PU timing belt coating is designed to increase durability, improve friction and meet many specific operating conditions. PU materials can be customized in terms of hardness, thickness and surface structure, ensuring compliance with both the exacting requirements of food processing and heavy industrial loads. Supports machining to size, gluing and creating grooves according to actual requirements.

See below a summary table of coating types and images of PU timing belt coating surfaces

Perason offers a full line of coatings for PU (polyurethane) toothed belts, which increase durability, improve load-carrying capacity and expand the belt’s application range in a variety of operating environments. Depending on the type of coating, belts can change their friction properties, abrasion resistance, surface hardness as well as heat, chemical or grease resistance.

PU belt coatings are produced with many levels of hardness and diverse surface structures: smooth surface, textured surface or grooved surface. Each type is designed to suit a specific transport task. Common hardness ranges from 35° Shore A to 75° Shore A, allowing flexible selection according to technical requirements. If you need support, our technical team is always ready to advise on the optimal solution for your actual application.

PU-coated toothed belts are widely used from the food industry, where hygiene and friction control are priorities, to heavy industrial fields, where high load-bearing capacity and mechanical durability are needed, we always have a suitable line of belts. Each application can select the optimal coating to achieve the desired coefficient of friction, wear resistance and thickness.

All coatings and substrates can be customized to customer specifications.

Table of Contents

Material table of PU timing belt coatings

#	Name type coating	Material	Thickness (mm)	Hardness (Shore A)
1	Chrome leather	natural leather	3	85
2	Novo felt	polyester fibre	1.5 / 2.5	n.a
3	Polyamide fabric	polyamide	0.5	n.a
4	Celloflex	polyurethane	2 - 10	20
5	Sylomer - G	polyurethane foam	6 - 12	10
6	Sylomer - R	polyurethane foam	6 - 12	15
7	Sylomer - L	polyurethane foam	6 - 12	15
8	Sylomer - M	polyurethane foam	6 - 12	20
9	Sylomer - P	polyurethane foam	12	25
10	PU foil 85º Sh. A	polyurethane	1 - 4	85
11	PU foil 60º Sh. A	polyurethane	2	60
12	PU longitudinal groove	polyurethane	2	60
13	PU yellow	polyurethane	2 - 10	55
14	PU grey	polyurethane	2 - 3	55
15	Polythan	polyurethane	2 - 5	70
16	PVC blue	polyvinyl chloride	1 - 3	40
17	PVC white	polyvinyl chloride	1.5	65
18	PVC knobs white	polyvinyl chloride	1.8	65
19	PVC Fishbone white	polyvinyl chloride	3	65
20	PVC Saw tooth profile	polyvinyl chloride	3	65
21	Supergrip green	polyvinyl chloride	3.5	40
22	Supergrip white	polyvinyl chloride	3.5	50
23	Supergrip petrol	polyvinyl chloride	3.5	40
24	Supergrip black	rubber	3.5	70
25	Porol	rubber	2 - 15	RD165
26	EPDM rubber	rubber	2 - 10	70
27	Rubber white	rubber	2 - 10	50
28	Correx	natural rubber	4 - 10	40
29	Linatex	natural rubber	1.6 - 12	40
30	Linatrile	Polymer - NBR	2.4 - 5	50
31	Elastomer green	rubber	1 - 2	60
32	Rubber sponge	rubber	10 - 15	RD250
33	Teflon	teflon	0.3	n.a
34	Magnetic foil	rubber ferrit	1	n.a
35	RP400	rubber	2 - 6	38
36	Viton	rubber	3 - 5	75
37	G/GSTR	rubber	0.5 - 12	60
38	Silicone	silicone	0.5 - 12	40
39	Brex-red	polyurethane	2	60
40	Bbex-blue	polyurethane	2	60

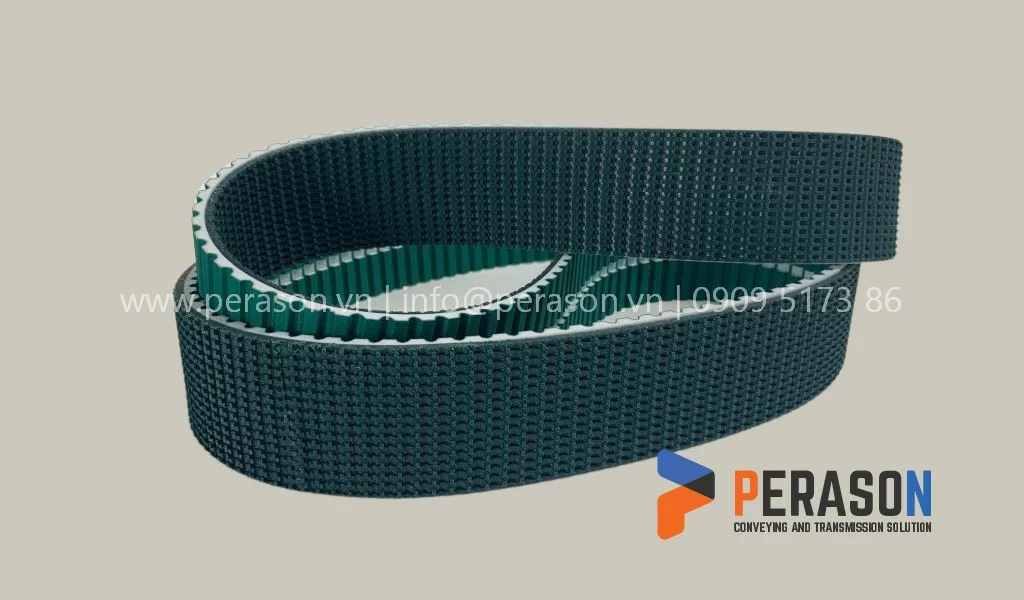

Image of PU timing belt coating surface

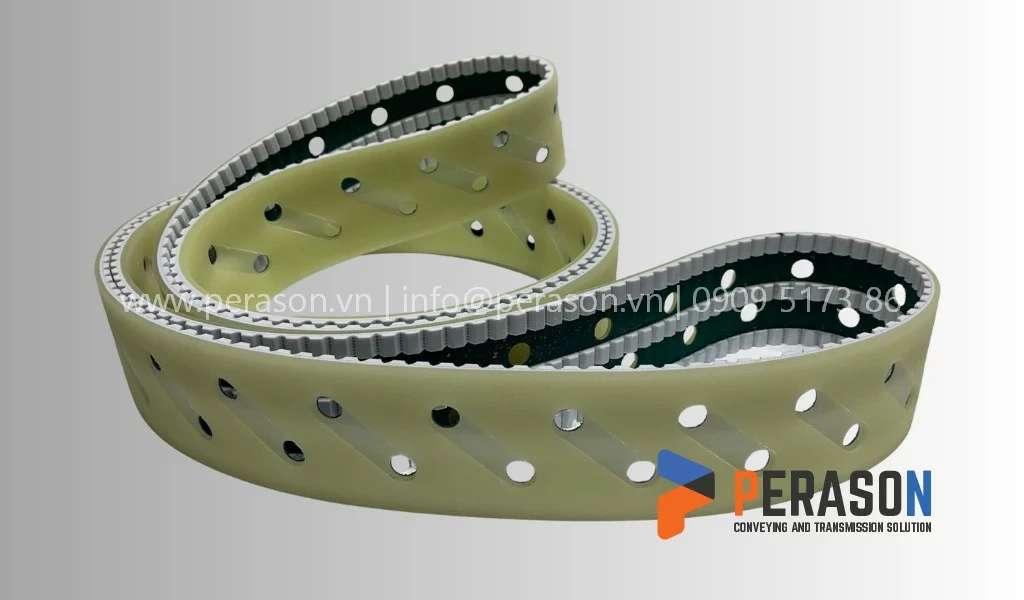

High-Performance Timing Belt Coating for Industrial Use — High performance timing belt coating for improved grip and durability

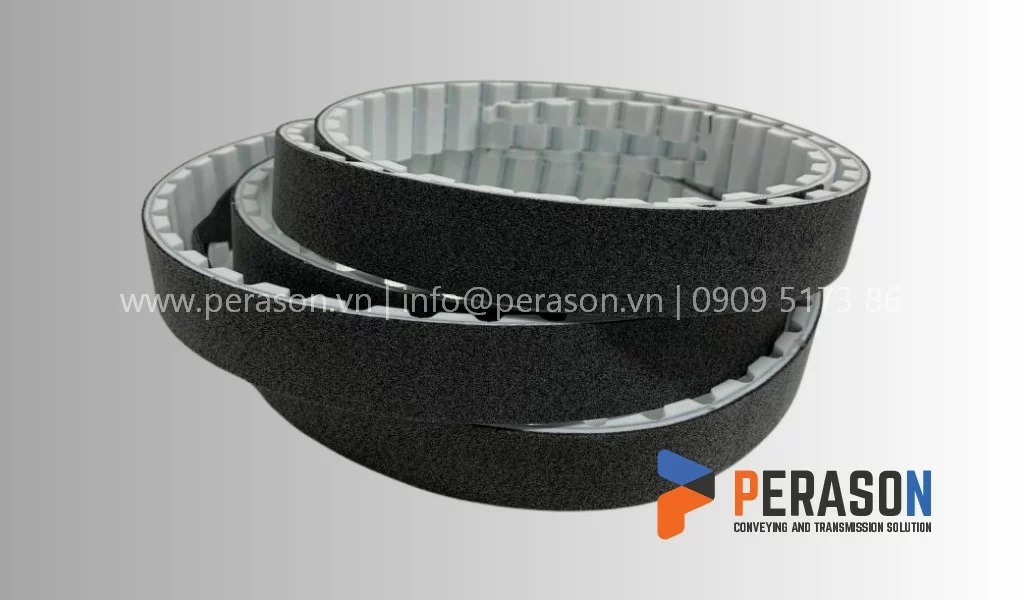

PU Timing Belt Coating with Enhanced Heat and Wear Resistance — PU timing belt coating with heat and wear resistance

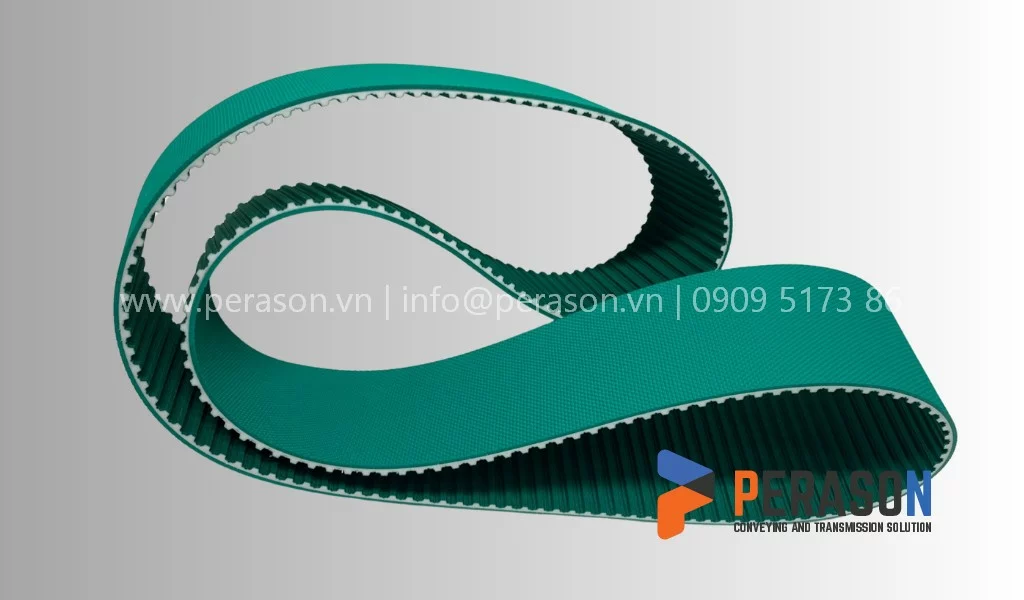

Custom Timing Belt Coatings for Food Processing and Packaging Lines — Custom timing belt coating for food processing conveyors

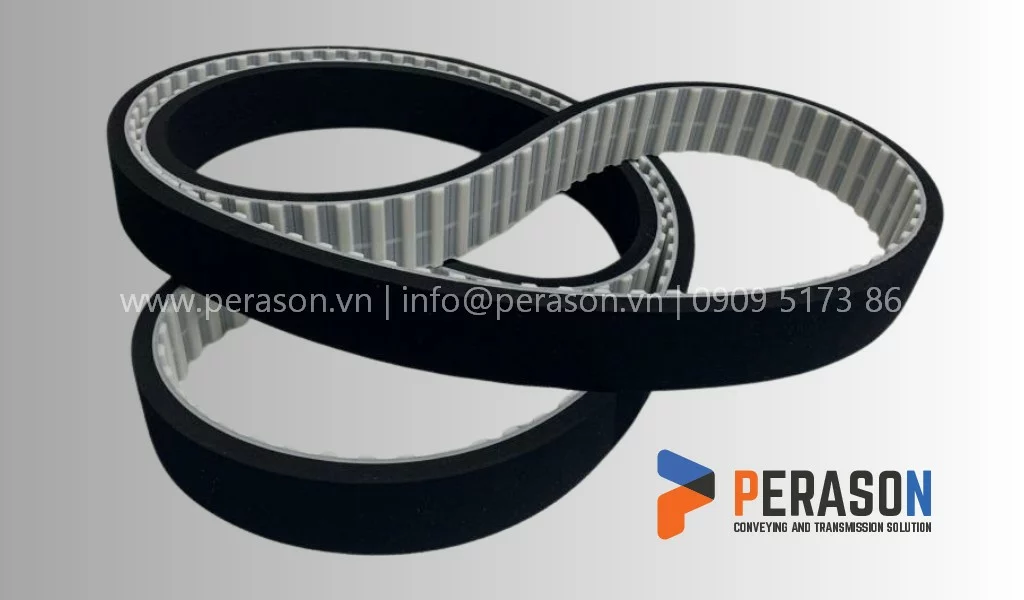

Multiple-Hardness PU Timing Belt Coatings for Flexible Applications — PU timing belt coating available in multiple hardness levels

In addition, choosing the right coating material requires specialized hardness measuring equipment and a thorough understanding of the application to select the appropriate replacement belt. Perason has experience providing coated belts. If you need it, please contact us for consulting support and the most competitive quote.
