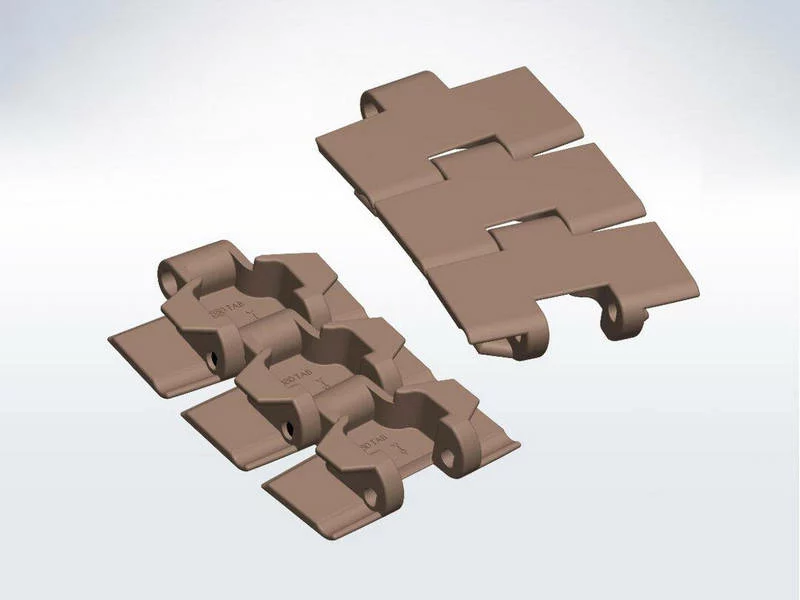

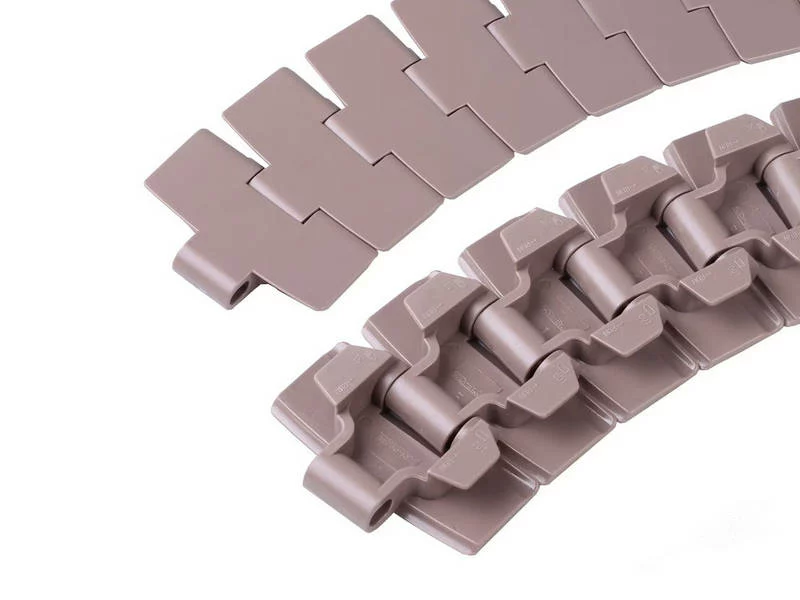

Flat Top Chain 880 TAB a high quality flat chain line, specifically designed with the ability to bend flexibly to both sides. The product is ideal for curved and straight conveyor systems, ensuring smooth and stable transport of light to medium loads.
With a standard minimum turning radius (curvature radius) of R=500, the chain 880TAB chain uses an advanced TAB clamping mechanism, which eliminates toppling and ensures smooth movement through conveyor bends.

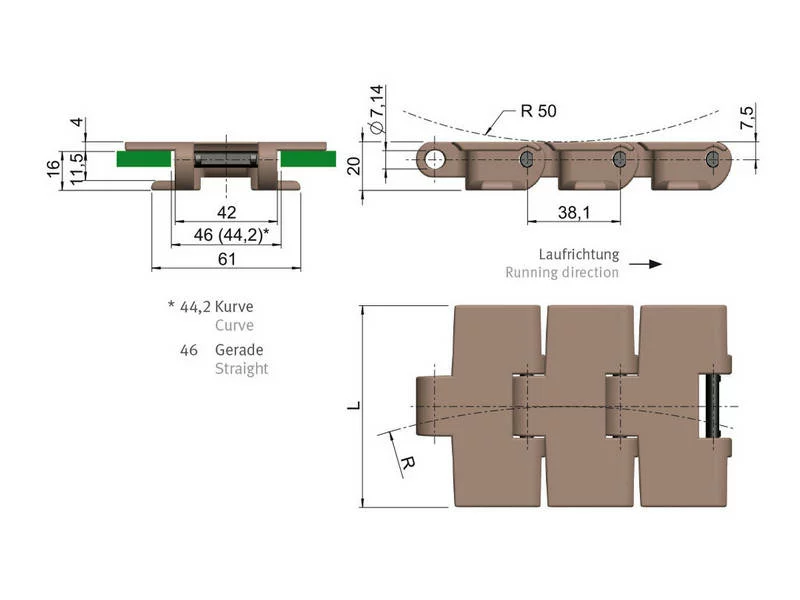

Main technical specifications Flat Top Chain 880 TAB:
- Standard chain pitch: 38.1 mm (1.50 in).
- Standard width versions: K325 (82.6mm), K450 (114.3mm), K600 (152.4mm), K750 (190.5mm).
- Minimum retroreflection radius: 75.0 mm (3.00 inches).
- Standard length of a box: 80 links, equivalent to 3.048 m (10.0 ft).
Outstanding features Flat Top Chain 880 TAB:
- Wide application: Suitable for transporting light and small packaging such as PET bottles, cans, cartons, meeting the needs of filling, bottling, labeling, and packaging lines.
- Materials and durability: Manufactured from high-tech plastic material POM Acetal (including brown low-friction LFA version), featuring outstanding wear resistance and good performance at high speeds.
- The chain latch is made of stainless steel.
- Impressive allowable tensile strength: 2250 N (506 lbf).
